Series 1200

• Designed for use on pumping wells
• Single or dual-headed units available
• Positive displacement
• Accurate chemcial injection
• Simple Design, easy maintenance

 PERFORMANCE CHARACTERISTICS

Plunger  Size Maximum  Discharge Pressure Maximum  Volume Output Simplex  Unit Duplex Unit 3/16” 3000 psi 4.5  Pints/Day 9  Pints/Day 211.5  kg/cm2 2  Liters/Day 4  Liters/Day 1/4” 1500 psi 7  Pints/Day 14.5 Pints/Day 105.5  kg/cm2 3.5  Liters/Day 6.5  Liters/Day 3/8” 1000 psi 18.0 Pints/Day 36.0 Pints/Day 70.5 kg/cm2 8.5  Liters/Day 17 Liters/Day 1/2” 500  psi 32.0 Pints/Day 64 Pints/Day 35 kg/cm2 15 Liters/Day 31 Liters/Day

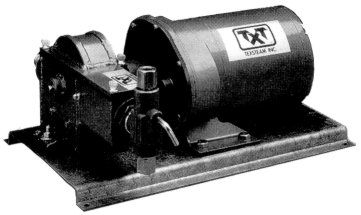

Series 2200 Scorpion

• 1/4 horsepower electric-driven motor (TENV)
• 316 stainless steel fluid end
• Simplex or Duplex available
• Conduit connection
• Single or 3 phase
• Maximum discharge pressure 1,000 psi
• Maximum volume 120 gallons per day (duplex model)
• Built-in gear reducer available in 15, 30 or 60 strokes/minute
• Crosshead bearing supported on both ends
• Adjustable while running

PERFORMANCE CHARACTERISTICS WITH 1/4 HORSEPOWER MOTOR

Model  Number Plunger  Size SPM Maximum  Output @ 1000 PSI (GPD) 70 kg/cm2 (Liters/Day) 2204 3/16” 15 2 8 30 5 16.5 60 8.5 32.5 2201 1/4” 15 4 14.5 30 7.5 28.5 60 15.5 57.5 2203 3/8” 15 8.5 32.5 30 17 64.5 60 34.5 129.5 2205 1/2” 15 15.5 57.5 30 31 115 60 61.5 230

Series 2300

• Maximum discharge pressure: 6000 psi (414 bars) with 3/16” plunger
• Maximum volume 139 gallons per day (528 liters per day) with 1/2” plunger
• Adjustable while running (each fluid end)
• Available simplex, duplex, triplex, or quadruplex
• Available in four speeds: 15, 30, 60 and 120 strokes per minute
• Conduit connection standard; optional 1 or 3 phase, TEFC or explosion proof
• No oil bath gear houses
• Available with 3/16”, 1/4”, 3/8”, or 1/2” plunger

PRESSURE AND VOLUME CHART

Plunger  Size SPM Max. Discharge Pressure Maximum        Minimum PSI Bars GPD LPD GPD LPD 3/16” 15 6000 414 2.4 9 .2 1 30 6000 414 4.9 19 .5 2 60 6000 414 9.8 37 1.0 4 120 4000 275 18.7 71 1.9 7 1/4” 15 3200 221 4.3 16 .4 2 30 4000 275 17.3 65 .9 7 60 4000 275 17.3 65 1.7 7 120 2100 145 34.6 131 3.5 13 3/8” 15 1450 100 9.8 37 1.0 4 30 1800 124 19.6 74 2.0 7 60 1700 117 39.2 148 3.9 15 120 950 65 78.5 279 7.8 30 1/2” 15 820 56 17.4 66 1.7 7 30 1025 71 34.8 88 3.5 9 60 1000 70 69.7 264 70 26 120 525 36 139.5 528 13.9 53

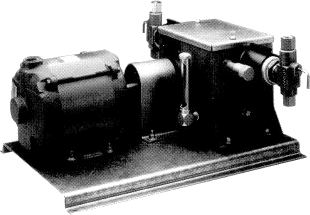

Series 4300

• Positive displacement
• Up to 8 pumping heads driven by a single motor
• Each pumping head capacity is field adjustable 0 to 100% while running
• Oil bath lubrication for long gear box life

PERFORMANCE CHARACTERISTICS

Plunger Size Maximum Discharge Pressure Maximum Volume Output @ Gear Ratio 100:1 50:1 25:1 3/16” 5000 psi 2.5  Gallons/Day 5  Gallons/Day 11 Gallons/Day 352  kg/cm2 9.5  Liters/Day 19 Liters/Day 41.5 Liters/Day 1/4” 2400 psi 5  Gallons/Day 10 Gallons/Day 20 Gallons/Day 169  kg/cm2 19 Liters/Day 38.5 Liters/Day 74.5 Liters/Day 3/8” 1200 psi 12 Gallons/Day 23 Gallons/Day 46 Gallons/Day 84 kg/cm2 45.5 Liters/Day 86.5 Liters/Day 174  Liters/Day 1/2” 600  psi 21 Gallons/Day 40 Gallons/Day 80 Gallons/Day 42 kg/cm2 79.5 Liters/Day 151  Liters/Day 302.5  Liters/Day 3/4” 300  psi 46 Gallons/Day 91 Gallons/Day 182  Gallons/Day 21 kg/cm2 174  Liters/Day 345  Liters/Day 689  Liters/Day 1” 150  psi 81 Gallons/Day 163  Gallons/Day 325  Gallons/Day 10.5 kg/cm2 307  Lites/Day 617  Liters/Day 1229 Liters/Day

Series 3700

• Handles all types of solutions and chemcials
• Single or dual headed units available
• Field adjustable speed/volume control
• Operates with air/gas pressures as low as 5 psi
• Furnished with or without resevoirs

PERFORMANCE CHARACTERISTICS

Plunger  Size Maximum  Discharge Pressure Maximum  Volume Output Simplex  Unit Duplex Unit 3/16” 3000 psi 8  Pints/Day 16 Pints/Day 211  kg/cm2 4  Liters/Day 7.5  Liters/Day 1/4” 1500 psi 14 Pints/Day 28 Pints/Day 105  kg/cm2 6.5  Liters/Day 13.5 Liters/Day 3/8” 1,000  psi 36 Pints/Day 72 Pints/Day 70 kg/cm2 17 Liters/Day 34 Liters/Day 1/2” 500  psi 60 Pints/Day 120  Pints/Day 35 kg/cm2 28 Liters/Day 56.5 Liters/Day

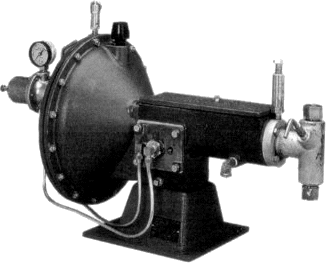

Series 5000

• Designed for continuous operation
• Excellent for pumping chemicals, methanol and corrosion inhibitors
• Field adjustable speed/volume control
• Simple modification can lower pumping rate to one stroke every five minutes
• Operates with air/gas pressures as low as 15 psi

PERFORMANCE CHARACTERISICS

Plunger  Size Maximum  Discharge Pressure Maximum  Volume Output 1/4” 12,000 psi 16 Gallons/Day 845  kg/cm2 60.5 Gallons/Day 3/8” 12,000 psi 43 Gallons/Day 845  kg/cm2 162.5  Liters/Day 1/2” 12,000 psi 85 Gallons/Day 845  kg/cm2 322  Liters/Day 3/4” 5000 psi 160  Gallons/Day 352  kg/cm2 605.5  Liters/Day 1” 3000 psi 320  Gallons/Day 211  kg/cm2 1211 Liters/Day 1-1/4” 2000 psi 500 Gallons/Day 141  kg/cm2 1892 Liters/Day

Series 5100

• Single Acting Powered by diaphragm motor with spring return
• Field adjustable speed/volume control
• Operates with air/gas pressures as low as 8 psi
• Adaptable for use in hazardous areas
• High Pressure heads available to 6,000 psi

PERFORMANCE CHARACTERISICS

Plunger  Size Maximum  Discharge Pressure Maximum  Volume Output 3/16” 1500 psi 4  Gallons/Day 106  kg/cm2 16 Liters/Day 1/4” 1500 psi 7.5  Gallons/Day 106  kg/cm2 28.5 Liters/Day 3/8” 1500 psi 17 Gallons/Day 106  kg/cm2 63.5 Liters/Day 1/2” 1500 psi 32 Gallons/Day 106  kg/cm2 121  Liters/Day

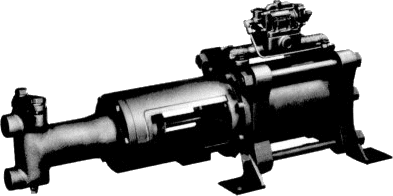

Series 6100

• Positive displacement pump
• Simple or Duplex offering
• Field adjustable speed/volume control
• Exhaust gas can be recoverd to minimize gas consumpution
• Heads made from cast steel or 316 stainless steel

PERFORMANCE CHARACTERISICS

Plunger  Size Maximum  Discharge Pressure Maximum  Volume Output 1-1/4” 9000 psi 1.5  Gallons/Minute 634  kg/cm2 6  Liters/Minute 2 3/4” 1800 psi 10 Gallons/Minute 127  kg/cm2 37 Liters/Minute 4” 900  psi 20 Gallons/Minute 63.5 kg/cm2 75 Liters/Minute

MX 1

• The new baby brother of the MX family proves to be a competitively priced workhorse.
• Three plunger sizes: 3/16”, 1/4”, and 3/8”
• Pressure ratings are:
• 3/16” — 5000 psi
• 1/4” — 4500 psi
• 3/8” — 2000 psi
• The MX1 is available in simplex configuration only—for duplex or higher pressures, go to the MX3

MX3

• Up to 62 gallons per day
• Lightweight
• Discharge pressures to 10000 psi
• Adjustable flow rate
• Positive cycle operation
• Easily field serviceable
• 316 SS fluid end
• Capable of handling dirty/sour gas
• 1 to 60 strokes/minute
• Low gas consumption
• Inlet pressure: 145 psi maximum / 30 psi minimum
• Adjustable vee packing

PRESSURE AND VOLUME CHART

Maximum  Discharge Volume Maximum Minimum PSI Bars GPD LPD GPD LPD MX3-4  3/16 10,000 690 8.0 30.3 .11 .42 MX3-1  1/4 10,000 690 14.5 54.9 .2 .75 MX3-3  3/8 6,000 414 32.1 121.5 .6 2.27 MX3-5  1/2 3,500 241 62.0 234.7 1.1 4.16

MX5

• 1-62 gph
• 1 to 60 strokes per minute
• Easily field serviceable
• Adjustable Packing
• Lightweight

PRESSURE AND VOLUME CHART

Model Simplex GPH Duplex GPH Pressure PSI Volume Per Stroke Max. Air Consumption SCF/DAY MAX MIN MAX MIN MAX CC 100  PSIG MX55 1/2”  PLUNGER   at 50 psi   at 100 psi   at 145 psi   5.2 5.4 5.4 1.04 .4 .9 10.4 10.4 10.4 1.9 1.9 1.9 4500 8500 10,000 2.99 5.98 8.67 6114 MX56 3/4”  PLUNGER  at 50 psi  at 100 psi  at 145  psi   12.9 12.9 12.9 2.1 2.1 2.1 23 23 23 3.75 3.75 3.75 2000 4000 6000 6.73 13.46 19.52 6836 MX57 1” PLUNGER   at 50 psi   at 100 psi   at 145 psi   23 23 23 9.4 7.3 9.4 42 42 42 14.6 12.5 15.8 1150 2250 3250 11.97 23.93 34.7 7451 MX58 1-1/4” PLUNGER   at 50 psi   at 100 psi   at 145 psir   34 34 34 14.6 12.5 15.8 62.5 62.5 62.5 27 23 29 750 1400 2000 18.7 37.4 54.23 8850

SERIES 9000

• Designed to pump any liquid from alcohol to mud
• Easily handles 1/4” solids, abrasives and fibrous materials
• Air or gas operated at supply pressures from 5 to 100 psi
• Can operate completely submerged
• Smokeless, quiet, fireproof
• Needs no priming for suction lifts up to 14 feet of water without footvalve and
• 29 feet of water with foot valve
• Features strong handle, sturdy base, a power control valve for close discharge volume control and a power air safty valve

SPECIFICATIONS

Min / Max power gas  pressure 5/100  PSI Maximum recommended  gas exhaust back pressure 20 PSI Maximum recommended  gas consumption 50 CFM Maximum recommended  fluid discharge pressure 60 PSI Maximum fluid suction  lift 29 Ft. Water Min / max recommend  fluid capacity 1/60 GPM Maximum recommended  strokes/minute 250  SPM Power gas safety valve set at 125 PSI
